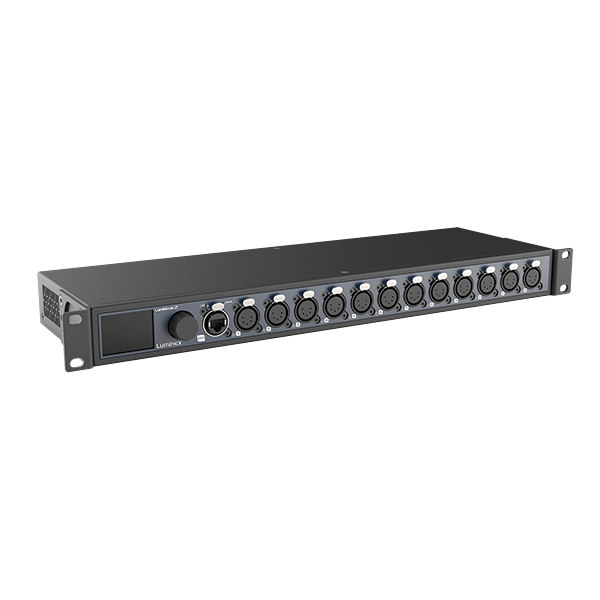

The Luminex LumiNode 12 is specifically designed with an all metal, robust full 19″ enclosure for rack mounting, making it an ideal solution for touring, theatre and studio installs.

Equipped with 2x 1Gb EtherCON ports and 12x 5-pin DMX ports LumiNode 12 offers a high DMX port count in only one single unit rack space. Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output.

All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported. They can be processed and converted by the 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

Please Enquire for Prices
Enquire
Categories: ,

Technical Specification

Industry protocols

All relevant industry-standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported.

The LumiNode family is fully DMX/RDM compatible. LumiNet Monitor and other third party RDM software or lighting consoles (supporting ArtNet RDM) can make use of the full RDM functionality.

Intuitive UI

The built-in web UI delivers a great user experience.

Process engines can be easily configured in a very intuitive workflow. Just decide what you like to do with your lighting data by choosing the mode of the process engine

Depending on the chosen merging/routing policy of the engine, the UI presents all possible input configurations. From here you just connect your input streams and your output connections.

Advanced networking

Use the full capacity of the Gigabit connectivity by sending different data in a different Group (VLAN). Setup a separate interface for IT monitoring without interfering with critical lighting data.

The known Group (VLAN) technology from GigaCore switches is also available in the LumiNode product family. This allows you to freely assign a different Group (VLAN) to the different network connectors and to the node’s interfaces.

ISL (Inter Switch Link) and custom trunks are available to transfer different VLANs on one ethernet connection.

Play & contact closure

Play allows you to record snapshots of all your output streams in a show as a cue list with fade times. This show can later be used as an input source of a process engine.

The external contact closure can be configured as a trigger on the network and be used as any other trigger source to control the playback of the recorded queue list.

Integration with web API

LumiNode features a fully documented web API, making the unit ideal for integration and automation in installation projects.

All configuration or manipulation (like recalling profiles, configuring engines, triggering play,…) can be done via web API (REST/JSON). Offering the maximum flexibility to integrate with any other hardware or software to control your infrastructure.

  • Features
  • Process engines: 16
  • Merging engine:
  • HTP
  • LTP
  • Backup
  • Switch
  • X-Fade
  • Custom
  • Softpatch: Yes
  • Master/Limit:
  • Proportional
  • Limit
  • Trigger system: Yes
  • ReRoute: Yes
  • Profile manager: Yes
  • Snapshot: Yes
  • DMX Redundancy: Yes
  • Monitoring software: LumiNet Monitor
  • Configuration:
  • Built in Web server
  • Documented Web API
  • Front end display menu
