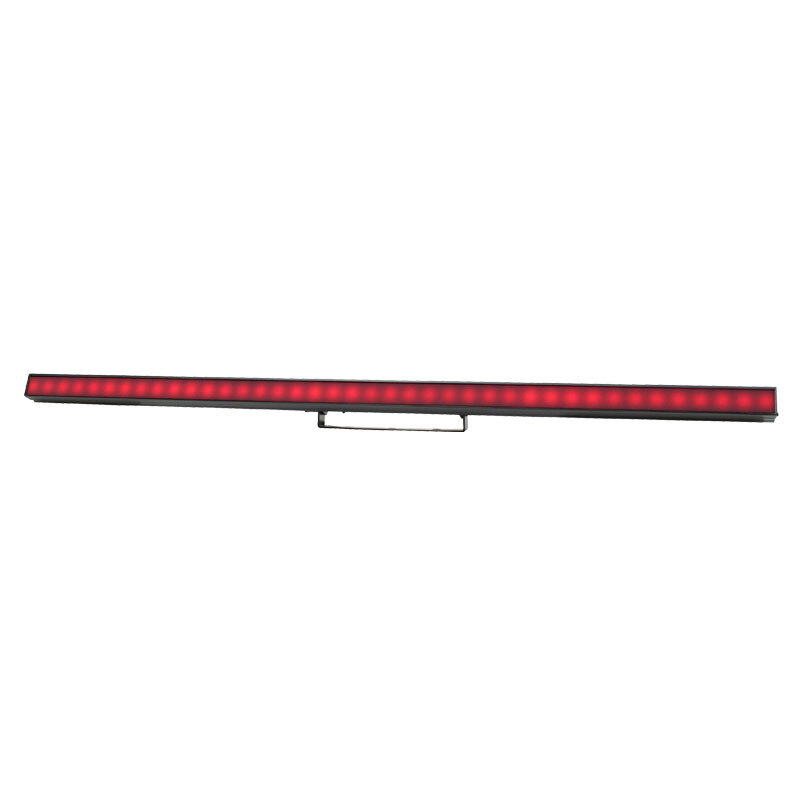

TPix Strip 80 MKII

The TPix Strips are pixel mappable strips controllable by DMX, Art-Net or Kling-Net. They feature a wide 120° viewing angle and feature a raised flat milky screen. Flush clear, flush smoked and raised tubular milky screens are included to further expand the versatility of these fixtures. The system is configured by using one controller for up to 16 strips arranged in four groups of four. The strips are easy to link with CAT5/CAT6 cables. 80 LED (40 pixel) version offers higher brightness and reduced dark zones between the LEDs.


Please Enquire for Prices

Technical Specification

  • 80 tri-colour SMD 5050 LEDs (RGB)
  • Viewing angle: 120°
  • Illuminance: 2250 Nits – Raised flat milky screen, 8150 Nits – Flush clear screen, 1250 Nits – Flush smoked screen, 1300 Nits – Raised tubular milky screen
  • 400Hz refresh rate
  • Pixels: 40
  • Pixel pitch: 12.5mm
  • TPix Strip requires the TPix Strip Controller for operation (Order code: LEDJ487)
  • Bracket allows for multiple rigging applications
  • RJ45 input/output (power/data)
  • Convection cooled
