Ayrton Mistral s

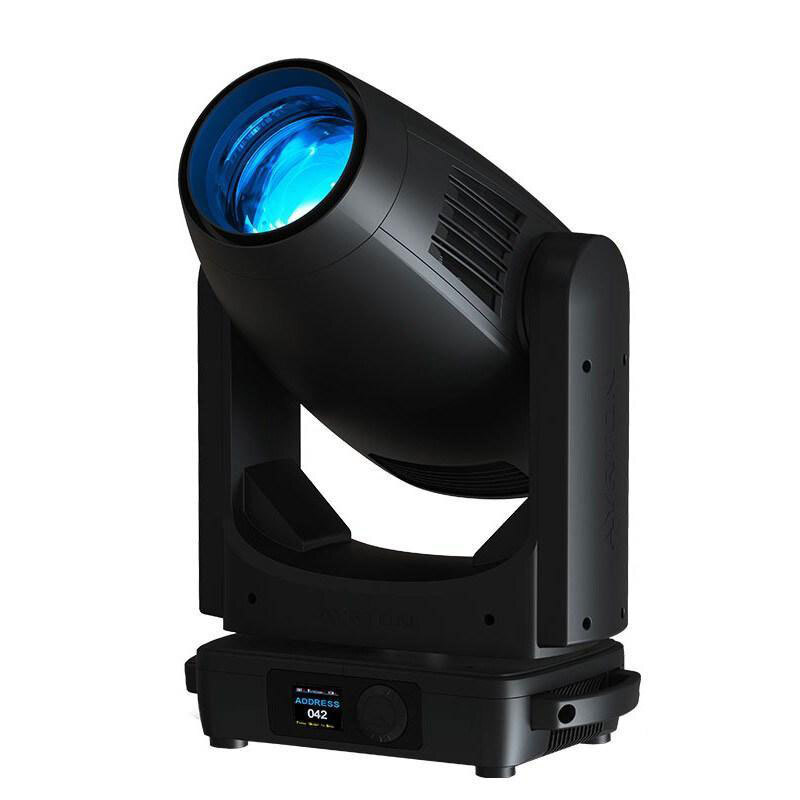

Ayrton Mistral, highly compact, lightweight and powerful

A versatile, new fully equipped 300 W spot luminaire in the same ultra-compact format as MERAK. Its new 13-lens proprietary optical system delivers a 8:1 zoom ratio with a zoom range of 6.7° to 53°. The optics, equipped with a 119 mm frontal lens, can achieve an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle. MISTRAL comes in two versions, each to meet the specific requirements of lighting professionals. MISTRAL S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 18,000 lumens and a colour temperature of 7000 K. Devised specifically for applications that require perfect colour reproduction, MISTRAL TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 6000 K.

Please Enquire for Prices
Enquire
Categories: ,

Technical Specification

  • LIGHT SOURCE
  • Mistral S
  • 26,000 lumens 8000 K white light engine
  • Total luminaire output: up to 18,000 lumens
  • Colour temperature output: 7000 K
  • CRI: greater than 70
  • Mistral TC
  • 21,000 lumens 7000 K white light engine
  • Total luminaire output: up to 14,000 lumens
  • Colour temperature output: 6500 K
  • CRI: greater than 90
  • Mistral S & Mistral TC
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events
  • MOVEMENT
  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
  • Pan and tilt with automatic repositioning
  • Moving head range: 540° (pan), 263° (tilt)
  • COLOURS
  • Sophisticated colour mix system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with seven saturated colour filters
  • GOBOS
  • Indexable rotating gobo wheel with 7 high precision glass gobos plus open position
  • Adjustable speed rotating gobo in both directions
  • Fixed gobo wheel with 9 high precision glass gobos plus open position
  • Gobo diameter: 25.5 mm
  • Image diameter: 20 mm
  • Gobo thickness: 1.1 mm
  • IRIS DIAPHRAGM
  • Fast iris diaphragme with adjustable dynamic effects
  • Iris range : 15 to 100% open
  • FROST
  • Light frost filter
  • Heavy frost filter (optional)
  • EFFECTS
  • Focusable graphic animation effect-wheel with continuous rotation in both directions
  • 5-facet circular indexable rotating prism
  • DIMMER / STROBE
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
  • SOFTWARE FEATURES
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version
  • HARDWARE FEATURES
  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • powerCON TRUE1 male and female connectors for power connection
  • CONTROL
  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 26 to 39 DMX channels)
  • POWER SUPPLY
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Power: 550 W maximum
  • COOLING SYSTEM
  • Advanced liquid cooling system
  • Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user’s modes with a new Silent Mode
  • Safety protection against temperatures excesses
