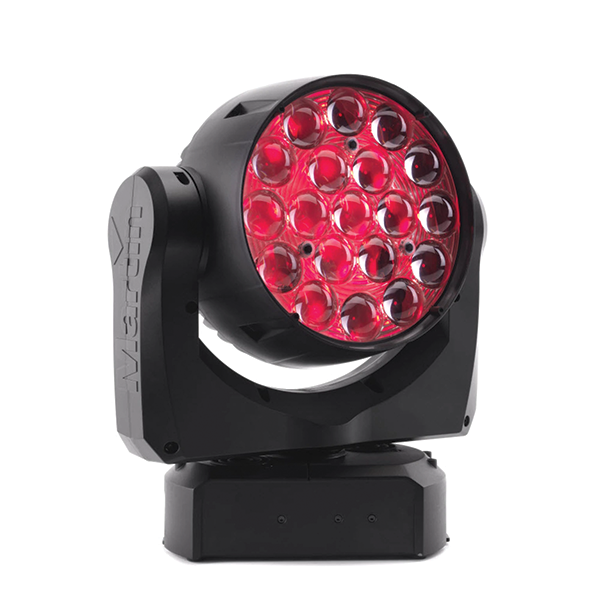

Martin Mac Aura XB

Martin Mac Aura XB Moving Wash Light

The MAC Aura XB hire takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior colour mixing system and an optimized lens design for tighter beams and more even washes. Martin’s unique and patented Eye-candy Aura Effect™ is also part of the package.

Please Enquire for Prices
Enquire
Categories: ,

Technical Specification

“THE PERFECT WASH MOVING LIGHT HIRE

The MAC Aura XB brings a new dimension to lighting design. This professional wash moving head as mentioned is perfect for theatre, TV and live events, providing an immersive and captivating experience for audiences. The MAC Aura XB is powered by a bright LED source, delivering stunning visuals with exceptional clarity. The compact and lightweight design makes it easy to set up and transport, while the intuitive controls make it simple to use. With its versatile functionality and outstanding performance, the MAC Aura XB is the perfect choice for any lighting designer looking to take their work to the next level.

If you’re looking for a Martin wash light hire with a little more horsepower under the hood, then the MAC Aura XB is for you. Like the standard MAC Aura, the XB creates compelling lighting effects via its eye-candy lens and beam coloring. But unlike the original, the XB gives you a higher 6,000-lumen output, wider zoom range (10°–60°) for pinpoint color effects to wide backlit swaths, and even better color mixing for crisp primaries to subtle, painterly pastels. Capture all the power of the MAC Aura standard, and then some, with the Martin Lighting MAC Aura XB LED moving-head wash light.

  • Dynamic Effects
  • Beam color mixing: RGBW
  • Aura (secondary lens array illumination) color mixing: RGB
  • Beam color temperature control: CTO, variable 10,000 – 2500 K
  • Beam and aura electronic ‘color wheel’ effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
  • Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
  • Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined
  • Electronic dimming: Independent beam and aura, four dimming curve options
  • Pan: 540°
  • Tilt: 232°
  • Pan and tilt speed: Adjustable via onboard control panel and DMX
  • Control And Programming
  • Control systems: DMX, RDM
  • Control options: Independent or synchronized Beam and Aura control
  • Control resolution: 8-bit, with 16-bit control of pan & tilt
  • Setting and addressing: Control panel with backlit graphic display
  • DMX channels: 14/25
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: RS-485
  • Power
  • AC power: 100-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Typical half-cycle RMS inrush current: 10.7 A
  • Typical power consumption, all effects static, zero light output: <25 W
  • Maximum total power consumption: 400 W
  • Physical
  • Length: 302 mm (11.9 in.) across yoke
  • Width: 302 mm (11.9 in.) across yoke
  • Height: 360 mm (14.2 in.), head straight up
  • Weight: 6.5 kg (14.4 lbs.) without accessories

“
