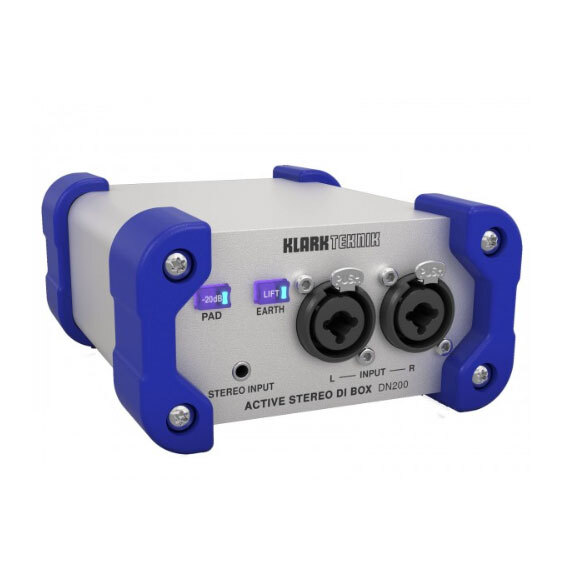

Klark Technik – DN200 V2 Stereo Active DI Box

Immaculately high headroom with a rich dynamic response and sonic clarity means every nuance of your signal is retained for crystal clear sound quality. Its increased headroom means that much higher level input signals can be accommodated without the need for an attenuating pad. Combined with very low noise input circuitry, the DN100 only requires a single -30 dB pad when connecting directly to amplifier outputs. This is a DI box designed to handle whatever you throw at it.

Please Enquire for Prices
Enquire
Category:

Technical Specification

  • Features
  • 2-Channel Active DI box with high-headroom design and +48 V phantom power for extended dynamic range
  • Sum and split options for flexible signal routing
  • Fully transformer-isolated design ensures electrical separation between PA and stage equipment
  • Balanced line inputs on Neutrik Combo* XLR and high impedance 1/4″ TRS connectors
  • Stereo input on 1/8″ TRS for connection of consumer audio equipment
  • Independent phantom powering for each channel for maximum reliability
  • Global 20 dB input pad and earth lift switches
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design
  • Specifications
  • Inputs
  • Connectors: 2 x combo XLR, 2 x 1/4″ TRS link jacks, 1/8″ stereo TRS jack
  • Impedance: 1 MΩ (combo & link jacks balanced), 20 kΩ (combo XLR only), 500 kΩ (1/8″ stereo TRS jack unbalanced)
  • Max input level: 28 dBu combo XLR and TRS link jacks (pad enabled), 21 dBu 1/8″ TRS jack (pad enabled)
  • Attenuator: 20 dB pad
  • Outputs
  • Connectors: 2 x 3-pin XLR
  • Impedance: 50 Ω
  • Max output level: 13 dBu with 10 kΩ load, 10 dBu with 600 Ω load
  • Min load: 600 Ω
  • System
  • Noise: 103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor
  • Frequency response: 20 Hz to 20 kHz, ±1 dB, 10 kΩ load
  • Distortion (THD + N): Typically less than 0.005 @ 1 kHz, +10 dBu
  • Crosstalk: Less than 100 dB @ 1 kHz, inputs terminated
  • Power Requirement
  • Voltage: +48 V phantom
  • Current consumption: Less than 10 mA per channel
