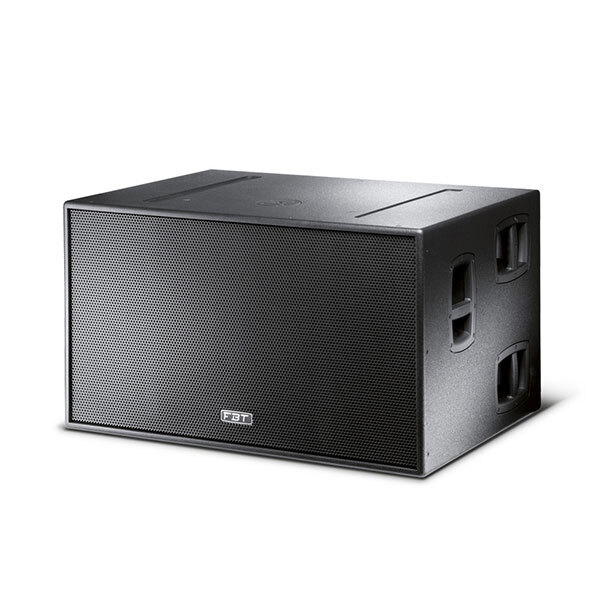

FBT Mitus 218SA - Active Sub

Active Subwoofer Hire

Processed Active Subwoofer

2000W RMS – 145dB SPL

The FBT MITUS 218SA, 2 x 18″ bass reflex design subwoofer, is the perfect low-frequency extension and the ideal companion for the MITUS range or ground stack applications with optional metal base.

The FBT MITUS 218SA shall meet the following performance criteria: Frequency response of 30Hz to 100Hz, Maximum SPL of 145dB peak,Class D amplifier 2000W RMS. The FBT MITUS 218SA provides a DSP with 6 presets-cardioid and infra configurations.

The FBT MITUS 218SA feature 0.70″ Baltic birch plywood construction covered in a scratch resistant black paint with M20 top-mounted stand adapter and six FBT design aluminium handles. The control panel provides XLR in &link, volume control, preset, delay, phase 0°-180°, 3 status led indicators.

Please Enquire for Prices
Enquire
Category:

Technical Specification

The FBT MITUS 218SA is an Active 2 x B&C 18″ with 4″ VC large vented bass-reflex subwoofer which is the perfect low-frequency extension for the MITUS range built in amplification delivering 2000W RMS – 145dB SPL

  • Large vented bass-reflex subwoofer
  • 2 x 460mm (18’’) custom B&C high excursion subwoofers with 100mm (3.9’’) coil
  • Frequency Response from 30Hz to 100Hz
  • Class D amplifiers delivering 2000Wrms with switch mode power supply
  • DSP with 6 EQ presets, cardioids and infra configurations, delay
  • 18mm (3/4’’) birch plywood enclosure, textured scratch resistant black paint
  • Six FBT design aluminum handles
  • Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with optional MTB206 metal base.
  • M20 top mount stand socket
  • Optional 4 swivel mount casters 100 mm (4’’) on request
  • Control panel with XLR input and link, volume, presets, delay, phase 0°- 180°, groundlift
  • Configuration: 2 Way
  • Frequency response: 30Hz – 100Hz
  • Low frequency woofer: 2x 18″ B&C with 4″ VCs
  • High frequency driver: 1x 2″ (2.5″ VC)
  • Maximum SPL cont/peak: 139/145dB
  • Dispersion: Omnidirectional
  • Input impedance: 22 kOhm
  • Crossover frequency: Preset Dependant
  • Input connector: XLR with link out
  • Net Dimension (WxHxD): 1000 x 549 x 730mm
  • Net Weight: 90kg
  • Transport Dimension (WxHxD): 1150 x 740 x 900mm
  • Transport Weight: 102kg
  • AC Power requirements: 1840VA
  • Built-in amplifier LF/HF: 2000w
  • Built-in amplifier peak LF/HF: 4000w
  • Power cord: 5m PowerCon True1
