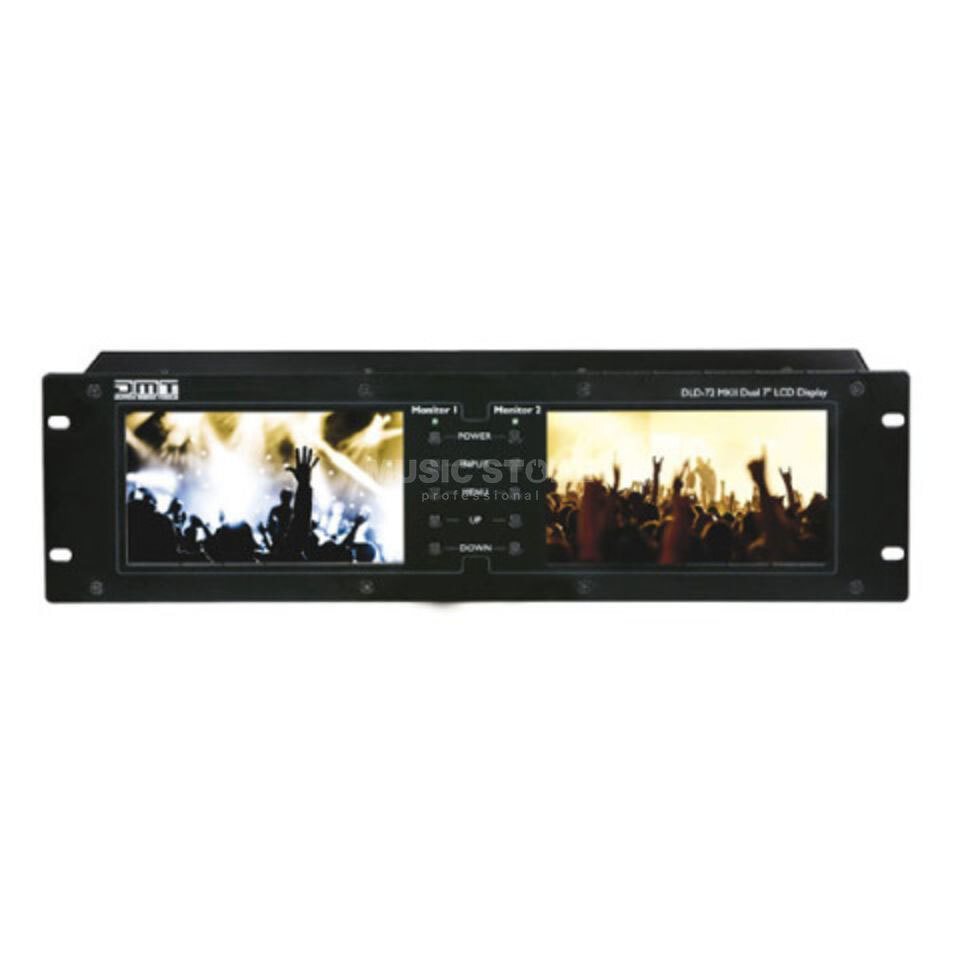

Dual 7″ Display with HDMI link

The DMT DLD-72 MKII is a professional rack mount double monitor system. It can be used for VJ monitoring, surveillance systems and any other multimedia setup where monitoring is necessary. It can be used for VGA, CVBS and HDMI sources. Because of the link outputs it is possible to make a daisy chain setup with the DLD-72 MKII. The built-in distributor guarantees a HDMI signal without signal loss. Both screens are individual with separate menus to set your desired settings for each screen.


Please Enquire for Prices
Categories: ,

Technical Specification

  • Specifications
  • Inputs
  • HDMI 1.3
  • 2
  • VGA (In)
  • 2
  • CVBS Input Impedance
  • 75 Ω
  • Analogue Video Input
  • BNC, RCA
  • Outputs
  • HDMI 1.3 (Loop)
  • 2
  • VGA (Out)
  • 2
  • CVBS Output Impedance
  • 75 Ω
  • Analogue Video Output
  • BNC, RCA
  • Control and Programming
  • Display
  • TFT
  • Display Resolution (Horizontal)
  • 800 px
  • Display Resolution (Vertical)
  • 480 px
  • Display Size
  • 7 “
  • Maximum Input Resolution
  • 1920 x 1080
