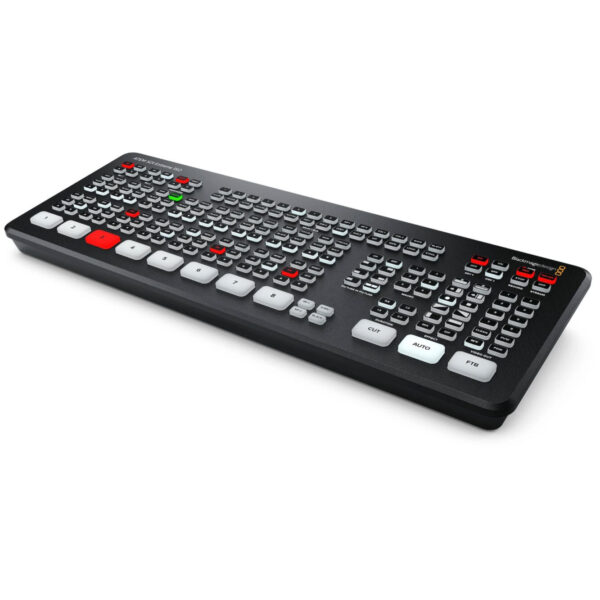

Atem SDI Extreme ISO

ATEM BlackMagic Design

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro and ATEM Mini Extreme models add live streaming and recording to USB disks. ATEM Mini even has secret broadcast features for high end work!

Faster Video Production plus Live Streaming

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output works with any streaming software while the Pro and Extreme models will directly stream via the internet to popular social media platforms! With up to 8 HDMI inputs, depending on the model, you can set up multiple camera angles such as wide shots and close ups of each person in the performance. Then connect to a computer with a PowerPoint slide show or websites and gaming consoles. All switching is in real time so you can live stream your show to platforms such as YouTube, Facebook, Twitch and many more!

Self Contained Broadcast Quality Switcher

ATEM Mini’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! On the ATEM Mini Pro and Extreme models you also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI “aux” output for program video.”

Please Enquire for Prices
Enquire
Categories: ,

Technical Specification

  • ATEM Mini Extreme ISO includes all the features of ATEM Mini Extreme, plus also records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved allowing the project to be recreated and edited later.
  • Connections
  • Total video inputs: 8
  • Total outputs: 4
  • Total aux outputs: 2
  • Total audio inputs: 2 x 3.5mm stereo mini jack
  • Total audio outputs: 1 x 3.5mm stereo mini jack
  • Timecode connection: none
  • HDMI video inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
  • Video input re-sync: on all 8 HDMI inputs
  • Frame rate and format converters: on all 8 HDMI inputs
  • HDMI program outputs: 2
  • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  • Computer interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection
  • Audio
  • Audio mixer: 11 input x 2 channel mixer: selectable on/off/audio-follow-video per channel plus separate gain control per channel.
  • Level and peak metering, plus new Fairlight audio enhancements: compressor, gate, limiter, 6 bands of parametric EQ. Master gain control.
  • Analog input: unbalanced stereo
  • Analog input delay: up to 8 frames
  • Input impedance: 1.8k
  • Max input level: +6dBV
  • Mic plug-in power: available on both 3.5mm mini jack connections
  • Streaming
  • Direct streaming: ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C
  • Recording
  • Direct recording video and audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
  • Video recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio
  • Audio recording: 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs
  • Switching: program switching recorded as a DaVinci Resolve project .drp file
  • Media format: supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system
  • Multi View Monitoring
  • Multi view monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
  • Multi view video standard: HD
  • Media Player
  • Media players: 2
  • Channels: fill and key for each media player
  • Media pool still image capacity: 20 with fill and key
  • Media pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
