Technical Specification

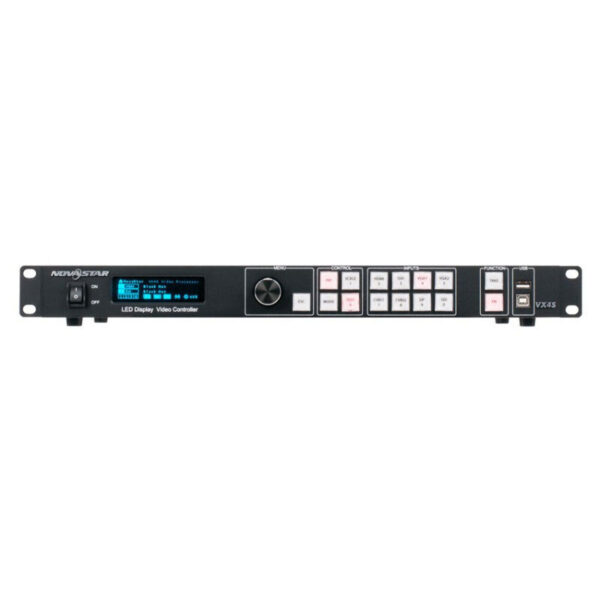

The VX4S-N is a professional LED display controller developed by NovaStar. Besides the function of display control, it also features powerful image processing capabilities. With excellent image quality and flexible image control, the VX4S-N greatly meets the needs of the media industry.
- Industry-standard input connectors
- − 1x CVBS
- − 1x VGA
- − 1x DVI (IN+LOOP)
- − 1x HDMI 1.3
- − 1x DP
- − 1x 3G-SDI (IN+LOOP)
- 4x Gigabit Ethernet outputs, capable of loading
- up to 2,300,000 pixels.
- Quick screen configuration supported
- Computer software for system configuration is
- not necessary.
- Seamless high-speed switching and fade effect
- supported, to present professional-quality
- images.
- Adjustable PIP position and size, free control at
- will
- Nova G4 engine adopted, enabling exquisite image display with a good sense of depth, without flickering and scanning lines.
- White balance calibration and color gamut mapping based on different features of LEDs used by screens, to ensure the reproduction of
- true colors.
- Independent external audio output supported.
- High bit-depth video input: 10-bit and 8-bit
- Multiple device units connected for image mosaic
- NovaStar’s new-generation pixel level calibration
- technology adopted, ensuring a fast and efficient calibration process
- An innovative architecture adopted, allowing for
- smart screen configuration
- The screen debugging can be completed within
- several minutes, which greatly shortens the
- preparation time on the stage.
