Technical Specification

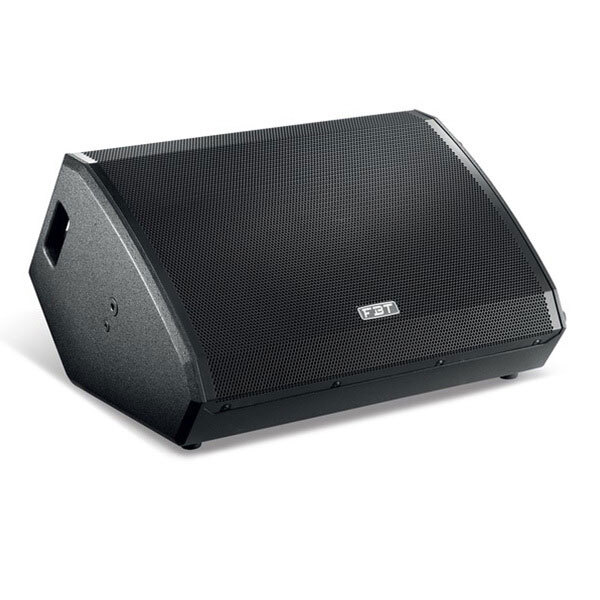

a sleek, powerful floor monitor designed to thrive on small to medium-sized stages where exceptional vocal and instrument performance is essential. Crafted with durable 0.59″ birch plywood and fortified with internal bracing, this passive speaker ensures enduring quality. Boasting a two-way design, it showcases a 15″ coaxial custom woofer with a 2.5″ voice coil alongside a 1″ exit throat B&C featuring a 1.7″ voice coil, delivering a frequency range spanning from 55Hz to 18kHz. With a maximum SPL of 130dB, it delivers crystal-clear sound for both speech and music applications. Equipped with a built-in passive crossover with soft-trip protection for the LF woofer and HF driver, and featuring two NL4 Neutrik speakon connectors on the rear panel, connectivity is a breeze. Additionally, optional mounting brackets enable versatile placement on walls or ceilings, while an integrated steel pole mount effortlessly transforms it into a standard vertical speaker configuration.
- Configuration: 2 Way coaxial
- Low frequency woofer: 15″ / 2.5″ coil
- High frequency driver: 1″ / 1.7″ coil
- Crossover frequency: 1.4kHz
- Input connector: 2x Neutrik SpeakON NL4 (in & thru)
- Recommended HP filter: 45Hz – 24dB oct.
- Recommended Amplifier: 500W RMS
- Long Term Power: 250
- Short Term Power: 1000W
- Sensitivity (@1W/1M: 99dB
- Impedance: 8 Ohm
- Frequency Response: 55Hz – 18kHz (@ -6dB)
- Maximum SPL Cont/Peak: 126dB / 130dB
- Dispersion: 90° conical
- Net Dimension (WXHXD): 620 x 342 x 517 mm
- Net Weight: 20.3kg
- Transport Dimension (WXHXD): 685 x 404 x 532 mm
- Transport Weight: 22.3kg
