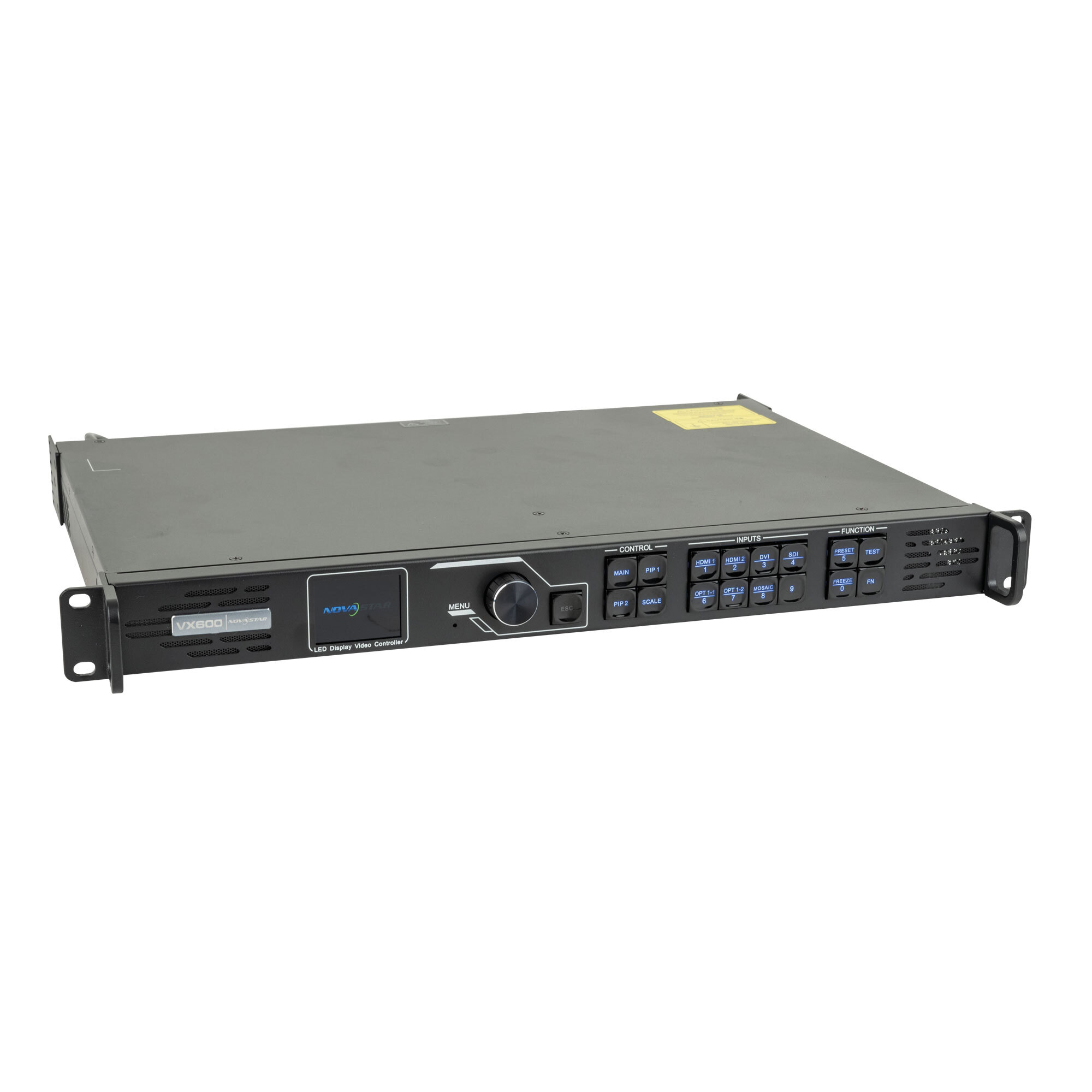

Novastar VX600

VX600 Novastar Processor Hire

The Novastar VX600 is an all-in-one video processor designed for use with LED display systems. It offers a range of features that make it an ideal choice for high-quality video processing applications, including live events, concerts, and other large-scale productions. One of the key features of the VX600 is its support for multiple input formats, including HDMI, DVI, VGA, and SDI. This makes it easy to connect to a wide range of video sources and ensures compatibility with most modern digital devices. In addition to its versatile input capabilities, the VX600 also includes advanced image processing technology that helps ensure the highest possible image quality. This includes features such as motion compensation, 3D noise reduction, and color management. The VX600 also supports a range of output resolutions up to 4K UHD at 60Hz, making it suitable for use with even the largest LED displays. And with built-in scaling capabilities, it can automatically adjust content to match the resolution of the display device. Overall, the Novastar VX600 All-In-One Video Processor is a powerful tool for anyone looking to create high-quality video displays using LED technology. With its advanced features and versatile connectivity options, it’s well-suited for use in a wide range of professional settings where reliability and performance are essential.

Please Enquire for Prices
Enquire
Categories: , ,

Technical Specification

The Novastar VX-600 is an all-in-one video processor suitable for small to medium size LED screen installations. It can drive up to 3,900,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels in height, which is ideal for ultra-wide and ultra-high LED screen applications. The VX-600 offers a variety of video inputs and it allows you to switch seamlessly between several input sources. Furthermore, it supports up to three layers (1x main / 2x PIP), scaling function, low latency and Gen-Lock function. Besides the built-in sending card with 6 Ethernet ports, the VX-600 also offers the option to install an SFP module. With this module you can cover bigger distances than the 100 metre limit of Ethernet cables and drive another VX-600 (fibre mode) or CVT10 fibre connector, which then drives your LED screens. The second fibre output serves as a backup and will automatically take over in case something happens to the main output (“Output 1″). For controlling even bigger LED screen installations, Image Mosaic function is available. This enables you to combine up to four VX-600 units. Screen configuration can be done by USB and Ethernet connection.

  • HDMI 1.3: 2
  • DVI Single Link: 1
  • 3G-SDI: 1
  • Main Outputs: 6
  • HDMI 1.3 (loop): 1
  • HDMI (PVW / MVR): 1
  • DVI Single Link (loop): 1
  • 3G-SDI (loop): 1
  • SFP Slot Type: 10G
  • SFP Slot Amount: 2
  • Scaling Function: Yes
  • Image Mosaic: Yes
  • PIP: Yes
  • Layers: 3
  • GenLock: In & Out
  • Maximum Loading Capacity: 3900000 px
  • Maximum Input Resolution: 1920 x 1200 / Width and Height can be defined by users
  • Controlling Mode: Ethernet / USB
  • Power Supply: 100-240 VAC 50-60 Hz
  • Power Consumption: 28 W
  • Power Connector in: IEC
  • Data Connector in: RJ45 / USB
  • Data Connector out: RJ45 / USB
